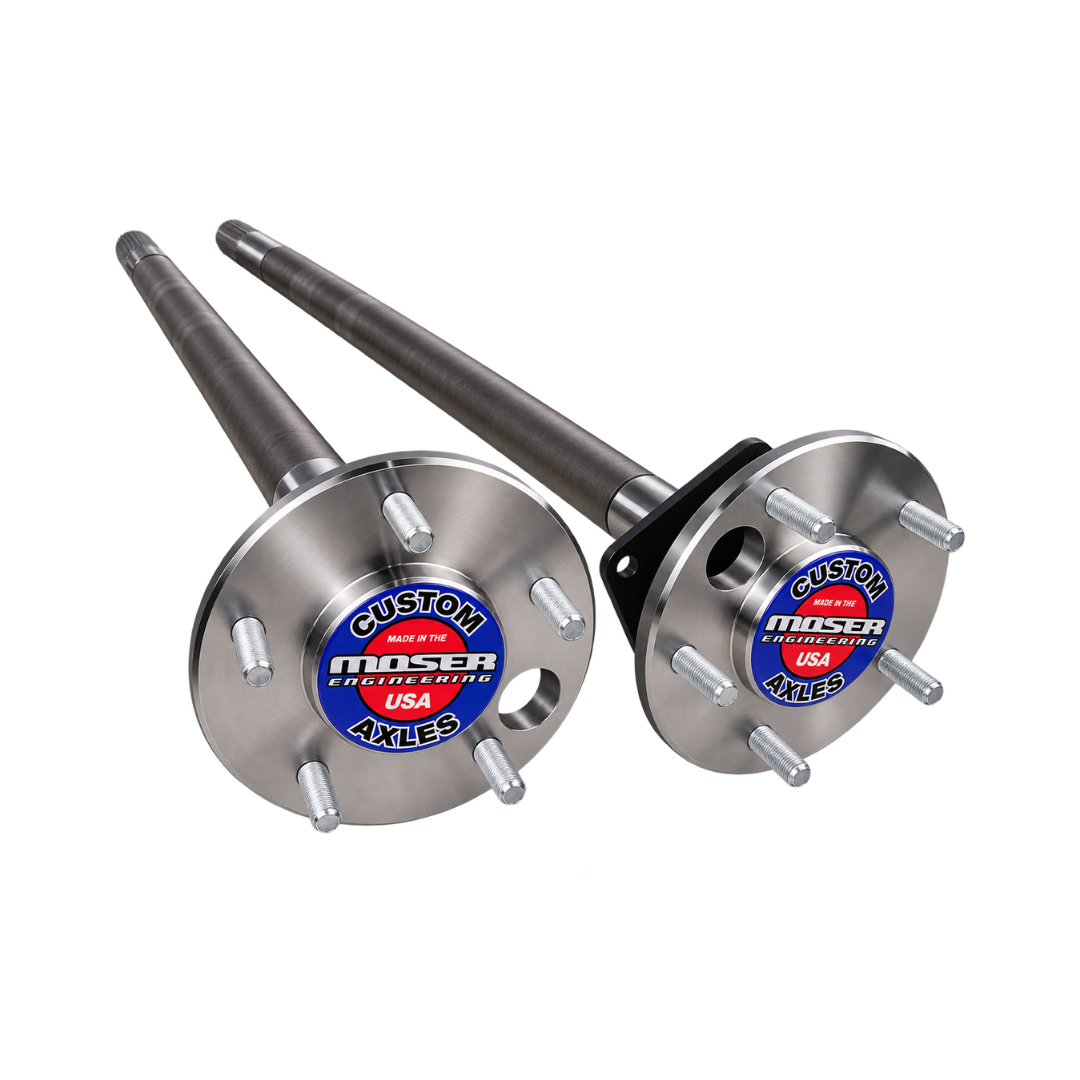

1957 Chevy, 17 Spline Axles, Bearings and Studs, Moser Engineering
2 Day Build Time

Made In The USA

Material: 1541H Heat Traeated Alloy

Application: 1957 Chevy, Bel Air, Nomad, 210, 150, Delray, Handyman, and Townsman

Specifications:
  • Moser Engineering Axles
  • Bearing Installed
  • Studs Installed
  • 17 Spline
  • Bolt Pattern: 5 x 4 3/4"
  • Choice of Stud Length
  • B Dimension: 2"
  • Hub Diameter: 2.810" A Dimension
  • Flange Diameter: 6.100" J Dimension
  • Outside Bearing Dia : 3.000"
  • Axle Lengths: 30", 28 5/8"

PLEASE NOTE: Bearings shipped loose to reuse factory retainer plates.

CONFIRM DIMENSIONS: These axles do not interchange with other years and applications. Contact us if you have questions.

Need to narrow these axle? Want another bolt pattern? Need a different spline count? Want a larger hub to fit custom disc brake? Need the flange machined down? Want to order a single axle? Contact us if you have questions or need to revise these specifications. 260-301-2424


1957 Chevy, 17 Spline Axles, Bearings and Studs, Moser Engineering

$476.00Price
