Strange HD Ford 9″ Bolt-in Housing
No additional charge for custom width
Fully Assembled

Applications:
1973-1987 Chevy C10 2WD
1973-1987 Chevy K10 4WD
1973-1991 Blazer 2WD & 4WD
1973-1991 Suburban 2WD & 4WD
Will Not Accept OEM Brakes

Center Housing
• Constructed from .141″ mild steel
• Heavy duty .282″ thick face plate
• Internal gussets provide rigidity and support axle tubes
• Slots allow exceptional weld contact of housing to tubes

Fill & Drain
• Facilitate fluid changes
• Allows ring gear inspection

Tubing
• Mild steel
• 3″ OD x .250″ wall
• Brake line tabs

Vent
• Prevents build-up of internal pressure
• Ensures sealing integrity

Mounts
• HD leaf spring mounts
• Shock mounts

Housing Ends
• Forged steel
• Choice of Strange end

Professionally Welded
• Jig welded to ensure proper alignment
• Exceptional weld quality

Center Section
Pro N Nodular Case
35 Spline Truetrac
Billet Aluminum Support
Moly 1350 Yoke
Choice of Gear Ratio

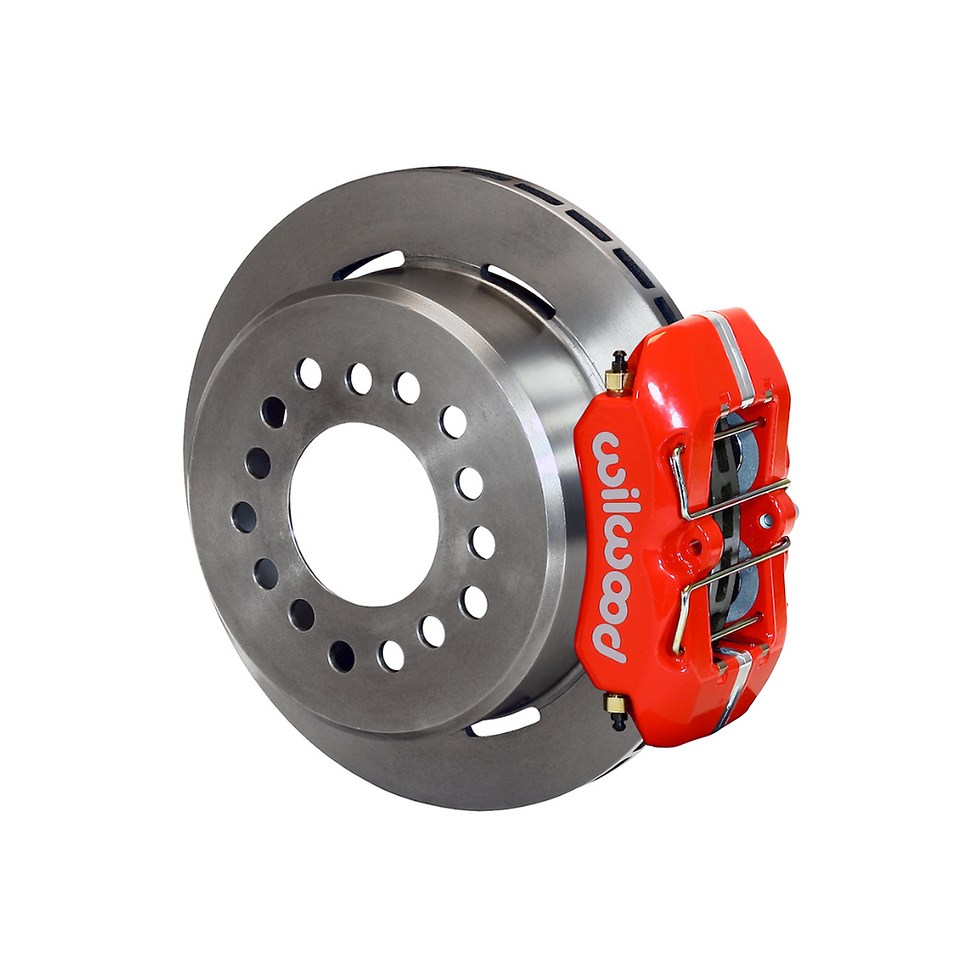

Wilwood Kit
11" Rotor
Internal Parking Brake
4 Piston Caliper
Black or Red Calipers


Includes:Alloy Axles • Forged from modified 1550 premium steel• Majority of machining performed before heat treat• Provides consistent material hardness• Induction hardened to Rc 58-62• Increases torsional strength while remaining ductile• Finish machined after heat treat to ensure trueness• Choice of bolt circle• Forged in the USA• Designed and machined by Strange EngineeringBall bearings with retainer plates3.150″ Housing EndsChoice of Tapered or Ball BearingRetainer plates supplied determined by housing endBall Bearings • Low friction bearing• Life reduced during prolonged use• External O-ring eliminates inner axle seal• Includes locking collars
